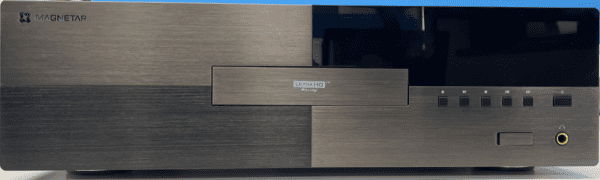

MAGNETAR UDP900 Universal Disc Player
$2,999.99
UDP900 Has RCA & XLR Balanced Analog outputs. Excellent Design & Build Quality. USB Hard Drive Can Be Connected For Playback Of Local Media Files.
$2,999. Free Double Boxed Shipping To Your Home. In Stock And Shipping Now! The UDP900 comes w/2 yr. warranty. email or call 914-723-3344 w/questions or comments.
Description
MAGNETAR UHD Blu-ray Disc Player HDR10+ and Dolby Vision HDR
Disc & USB types: UHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD-SACD, CD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE
Output: Analog audio: stereo Independent stereo analog audio: XLR balanced output, RCA output Optical/coaxial audio: up to 2 channels /192kHz PCM, Dolby Digital, DTS HDMI audio: up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream HDMI video: UHD/p24 1080/1030p / 1030I / 720p / 576p / 576I / 480p / 480I
Analog audio characteristics: Frequency range: 20HZ-20khz (-3dB ~ +0.05dB) Signal-to-noise ratio: & GT: 120dBr Total harmonic distortion + Noise: & LT: 0.00018% Output level: (RCA) 2. l±0.2Vrms. (XLR) 4.2±0.4Vrms Dynamic range: AGT: 120dB Channel separation: & GT: 120dB
General specification: Power supply: AC 100-240V ~ 50/60Hz Power: 30 W (Standby: 0.5W)
High-Power transformer: MAGNETAR engineers specially selected a custom 60W high-power low noise transformer for the UDP900, with a two-stage filter design along with Japanese Rubycon electrolytic capacitors to meet the high transient response required by surround sound systems and high-resolution audio.
A separate metal case lowers noise level providing stability to further improve audio & video quality
Elegant and Solid quality in Chassis Construction.
UDP900 Dimensions: 17.52″ wide x 12.64″ deep x 5.236″ tall (including feet), weight 34.2 lbs. adopts an all-aluminum alloy body and a reinforced double layer chassis structure, the internal main components are independently shielded by metal casing, greatly reducing vibration, noise and external magnetic field interference, bringing pure and high-resolution audio and video quality.
Premium Digital Analog Converter
-
2 sets of DACS , 1 for 2ch(ESS9038PRO D/A) and One for the 7.1(ESS9028PRO D/A).
-
Dual Power Supply Design: 60W toroidal transformer supplies power for analog audio.
-
The latest designed 6-layer gold immersion main PCB circuit adopts high-precision, ultra-low noise TXCO temperature compensated crystal oscillator doubling the high precision LDO power supply processing on the UDP800.
-
Murata multilayer ceramic capacitor TDK magnetic devices and 30 NCC electrolytic capacitors further improves audio and video quality.
-
Both audio boards use 4-layer PCB circuit boards, each channel is designed with independent wiring, equipped with high precision, ultra-low phase noise TXCO temperature compensated crystal, oscillator, numerous ELNA, NCC audio capacitors pairing with Red WIMA, ELNA SILMIC II capacitors, and independent high-power linear power supply module equipped with two Hi-Fi XLR balanced terminals and gold plated RCA outputs providing for better Audiophile sound quality.
-
It adopts an all-aluminum alloy body and a reinforced double layer chassis structure, the internal main components are independently shielded by metal casing, greatly reducing vibration, noise and external magnetic field interference, bringing pure and high-resolution audio and video quality.
-
Weight 34.17 lbs.
Dual Power Supply Design
60W toroidal transformer supplies power for analog audio. Using imported magnetic core, high quality oxygen free copper wiring, metal shields and full epoxy filling is used to reduce vibration noise and heat generation improving output and audio quality.
Customized high power switching power supply with high transient response provides power for the digital main board section, 60W high-power low noise transformer with a two-stage filter.
The included luxury build remote control is back-lit and controls all of the UDP900’s features
Value Electronics
Factory authorized MAGNETAR dealer
Email us with any questions. In stock now!
