Technics SL-1200GR Turntable

The SL-1200G combined Technics‘ traditional analogue technology & advanced digital technology while redesigning parts throughout. Its outstanding performance literally rocked the hi-fi market & redefined the reference for direct-drive turntables

Parts that were inherited from the SL-1200G are used in the SL-1200GR, beginning with the coreless direct-drive motor & precise motor control technology that eliminated the cogging that originated from rotation irregularity & including a low-vibration, high-rigidity platter & high-sensitivity tonearm. The level of performance clearly outperforms the usual standards of its class. The SL-1200GR invites more audio enthusiasts to enjoy music w/rich robust sound of analog records.

Technics commercialized the world‘s first direct-drive turntable, and the system took the world by storm. Unlike belt-drive and other systems, direct-drive systems rotate the motor at low speed and directly drive the platter, thus providing numerous advantages, such as the almost complete absence of degradation in S/N ratio due to motor vibration and deceleration mechanisms, as well as high reliability over a long period time because of not requiring parts replacement.

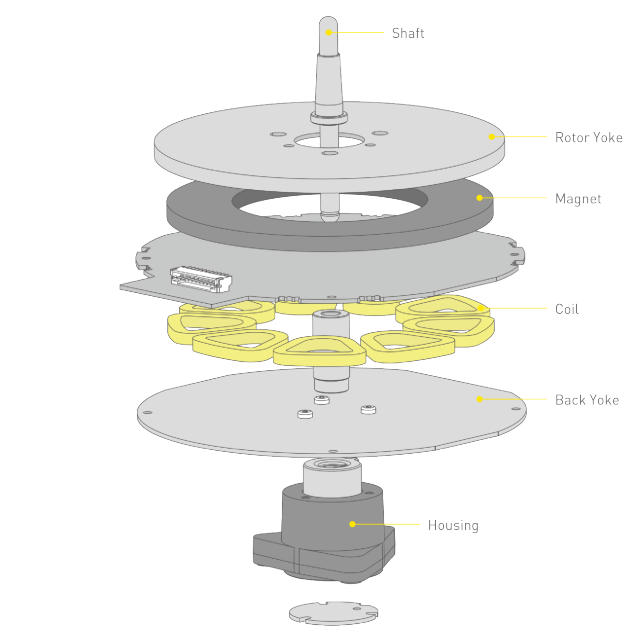

Technics developed the twin-rotor surface-facing coreless direct-drive motor w/rotor magnets placed on both sides, thereby eliminating the rotation irregularity of the motor, referred to as “cogging,” which was a unique issue for direct-drive systems. This motor was adopted for the SL-1200G, which once again drew a significant response in the hi-fi market. The SL-1200GR inherits the same design philosophy with the new development single-rotor surface-facing coreless direct-drive motor, resulting in the elimination of cogging.

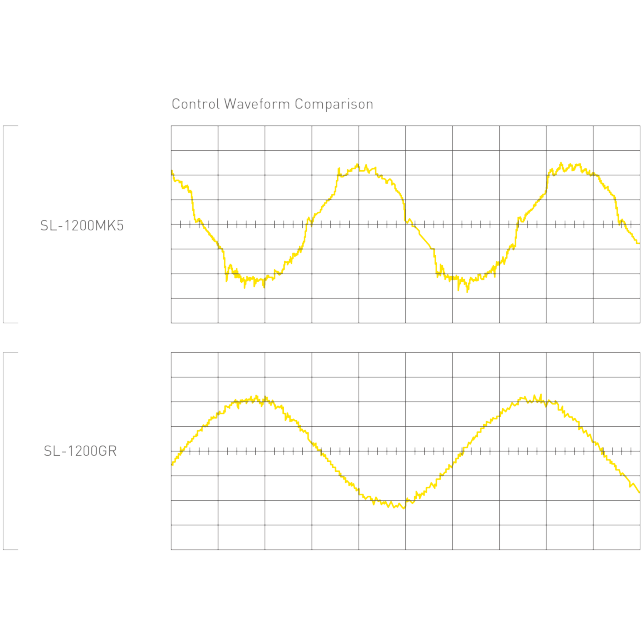

The rotation control, which verifies and corrects the precision of the motor, uses the latest motor control technology cultivated in the development of Blu-ray disc devices, just as that used by the SL-1200G. Sine waves stored in ROM are used for the control waveforms at constant speed &  achieves smoother & more stable rotation compared with using the simple sine wave generation with an external coil as in the conventional SL-1200MK5.

The electrical circuitry has tuning performed so that the newly developed motor of the SL-1200GR achieves maximum performance. The starting torque achieves 2.2 kg x cm w/a single rotor. The same startup time of .7 s @ 33 1/3rpm as the SL-1200G has been achieved.

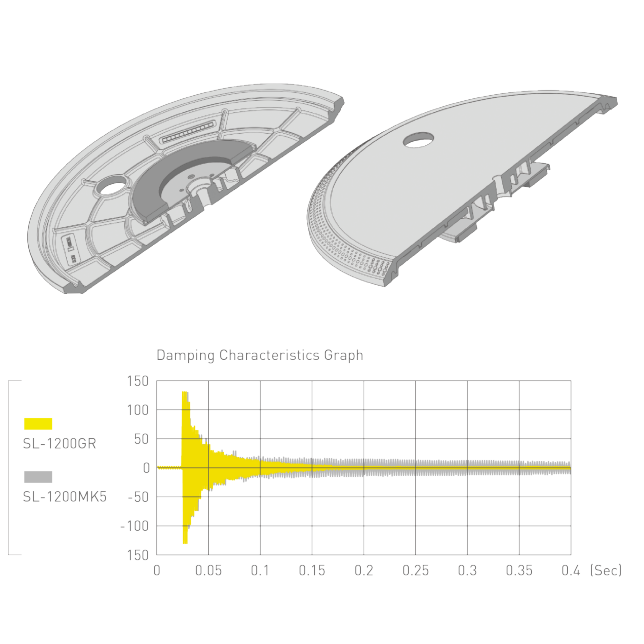

The platter achieves high rigidity & vibration damping characteristics by using a 2-layer construction w/deadening rubber applied to the entire rear surface of the aluminum die-cast to eliminate the unnecessary resonance that is otherwise relayed to the record, thereby producing clear sound.

To increase the inertial mass & reduce vibration, the shape of the aluminum die-cast portion was optimized by simulation. At 2.5 kg including the rubber mat, the SL-1200GR platter is .8 kg heavier than that of the previous SL-1200MK5. The back surface of the platter has strengthening ribs added to improve rigidity. Increasing the surface area of contact w/the deadening rubber achieves damping characteristics that are more than twice those of the SL-1200MK5.

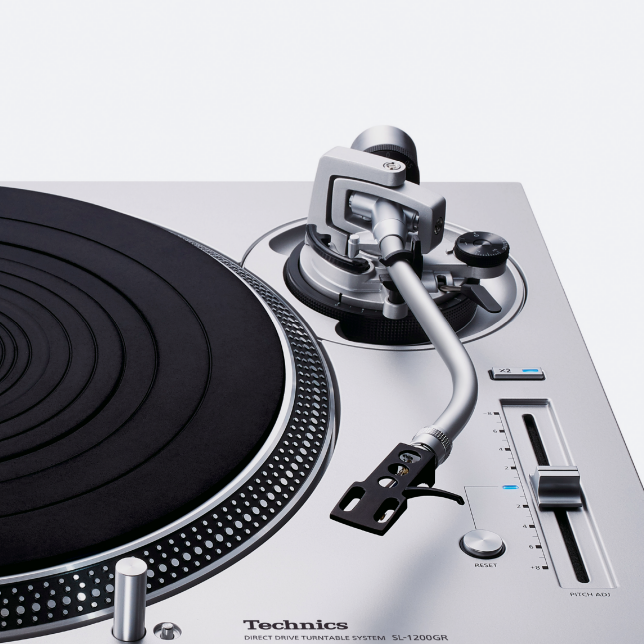

The tonearm tracks the rotation of the record and enables reading with high precision, and the tonearm inherited by Technics is the traditionally used static-balance universal S-shaped tonearm, employing an aluminium pipe with excellent light weight and rigidity for the material of the tonearm pipe.

With its gimbal suspension construction, the tonearm bearing section uses a cut-processed housing that employs high-precision bearings, as in the SL-1200G. The high initial-motion sensitivity of 5 mg or less is achieved through manual assembly & adjustment by skilled Japanese artisans. This enables the grooves etched into the record to be accurately traced

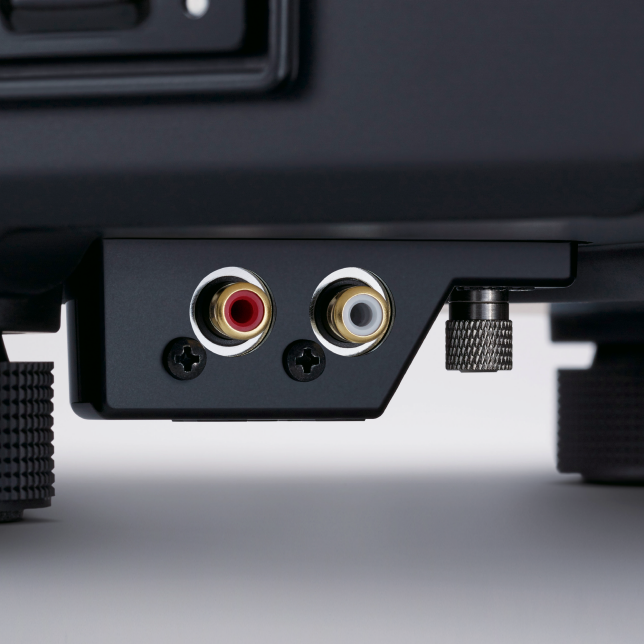

The turntable uses gold-plated phono terminals for detachable cables, and so a wide variety of cables can be selected. Also, the use of metal shielding construction inside the case reduces the effects of external noise.

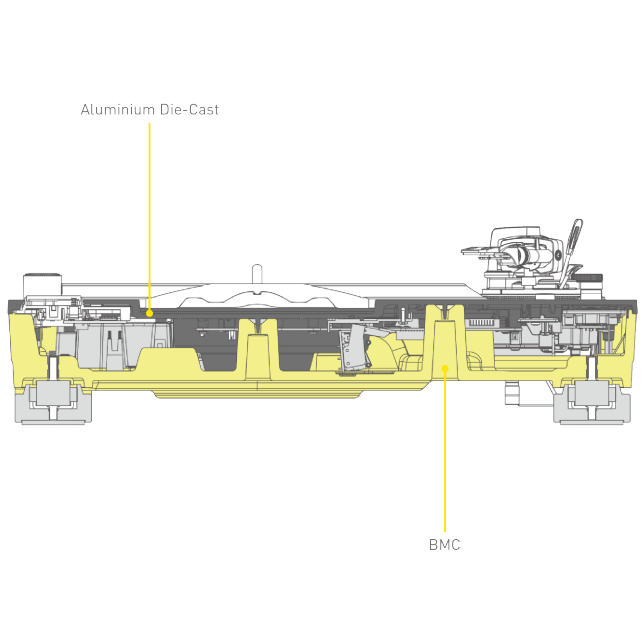

The SL-1200GR ensures high rigidity by using a body with a two-layered construction solidly unifying the BMC & aluminum die-cast chassis. For the insulators supporting the body, as with the SL-1200G, the SL-1200GR uses special silicon rubber that ensures both high vibration damping characteristics & long-term reliability. Vibration in the horizontal direction is absorbed by reinforcement w/cylindrical tubes using microcell polymers. While inheriting the technology of the SL-1200G, the insulators have had tuning performed specifically for the SL-1200GR.

The installation section of the insulators is equipped w/vertical adjustment mechanism. This eliminates the rattle that occurs when the turntable is installed in a rack & prevents unwanted vibration. In addition, exact horizontal adjustment of the platter & record surface reduces rotation irregularity due to slanting, thereby enabling more stable record playing.
